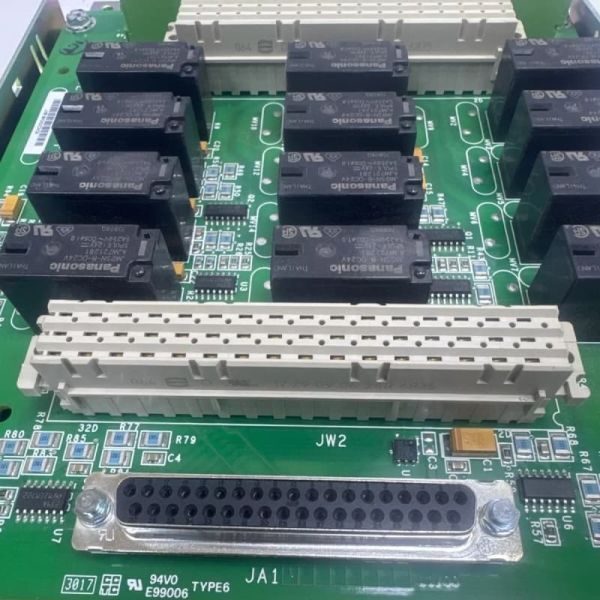

GE IS230SRLYH2A Simplex Relay Output Terminal Board
Product Description:
The GE IS230SRLYH2A is a Simplex Relay Output Terminal Board under the Mark VIe
Series, designed for industrial control systems. As a simplex
“S-type” terminal board, it accepts PDOA/YDOA I/O packs and
delivers 12 Form C relay output circuits via 48 customer terminals,
enabling reliable control of field devices through relay switching.
Manufactured in the U.S. and readily available, it features a
surface-mount design, operates in -30 to 65°C, and uses free-air
convection cooling—suited for harsh industrial environments. Its
compact, standardized S-type form factor supports double stacking
and aligns with other Mark VIe S-type boards for seamless cabinet
integration.
Key Features:
Relay Output Capabilities: Provides 12 Form C relays with fast response times. Contact life
is rated at 100,000 electrical operations and 10,000,000 mechanical
operations, ensuring long-term reliability in high-cycle industrial
use.
Diagnostic Functionality:Equipped with a read-only ID chip— PDOA/YDOA I/O packs read this
chip, triggering hardware incompatibility faults if mismatches
occur.Each relay includes an isolated contact pair for position feedback,
enabling real-time monitoring of relay status via PDOA/YDOA.When paired with option boards, uses isolated voltage feedback to
monitor fuse status; generates diagnostic alarms if fuses open
while voltage is present.
Option Board Compatibility: Supports three specialized option boards to extend functionality:
WROB---Converts SRLY to TRLY1B equivalence, supplying fused/sensed
power to 6 relays and dedicated power to the 7th.
WROF---Adds a single fuse to each relay’s common connection, with
fuse voltage feedback.
WROG---Uses one fuse to distribute power to all relays, with fuse
voltage feedback.
Simplified Configuration & Installation:No built-in jumpers,WROBH1 is the only option board with 6 jumpers
for relay power control, shipped pre-installed.
Euro-style pluggable terminals and standardized S-type mounting
simplify wiring, replacement, and cabinet organization. Supports
double stacking to save space.
Industrial Durability: Surface-mount technology resists vibration and temperature
fluctuations; operates in extreme humidity and relies on free-air
convection for cooling—no external cooling systems required.
Complies with Mark VIe ecosystem standards for cohesive integration
with controllers and I/O packs.
|
|
