| Brand Name : | GE |
| Model Number : | IS200DAMAG1BCB |
| Certification : | COO |
| Price : | $1900 |
| Payment Terms : | T/T |
| Supply Ability : | 999 |
| Delivery Time : | 5-7days |

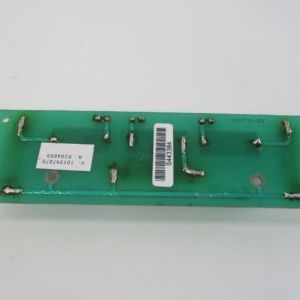

The GE Mark VI IS200DAMAG1BCB is a printed circuit board, part of GE's drive control system and Mark VI Speedtronic systems for gas/steam turbines.
As a gate drive amplifier/interface board, it connects IGBTs
(typically Powerrex CM1000HA-28H) to the main control rack, with
one per phase leg and three per drive. It features LED indicators
(DS1-DS4) showing IGBT states, connectors for IGBT terminals and
Bridge Personality Interface, and handles up to 690V/1700A, suited
for 620-frame low-voltage drives in high-power industrial
applications.
The electrical connection of the upper and lower phase leg IGBT modules to the Bridge Property Interface Board (BPIA) is realized by means of 12-pin and 6-pin vertical connectors for signal and power transmission.
Real-time feedback of the IGBT status is provided by four LEDs (two
yellow and two green), with the yellow light indicating that the
corresponding IGBT is on and the green light indicating that it is
off, for easy visual monitoring of the operating status.
As part of the GE Innovation Series 620 Frame Low Voltage Drive
System and the Mark VI Speedtronic turbine control system, the IGBT
supports drive control of industrial gas or steam turbines and is
the key interface between the power switching device and the main
control frame.
| Product ID: | IS200DAMAG1BCB |
| Name: | GE Mark VI IS200DAMAG1BCB Printed Circuit Board |
| Series: | Mark VI |
| Product Net Height: | 200mm |
| Product Net Width: | 100mm |
| Product Net Depth/Length: | 330mm |
| Product Net Weight: | 2kg |
| Warranty: | 1 Year |
.
|
|
