| Brand Name : | ABB |
| Model Number : | 216DB61 |
| Certification : | CQ,COO |
| Price : | $3000 |
| Payment Terms : | T/T |
| Supply Ability : | 9999pc |
| Delivery Time : | 5-7days |

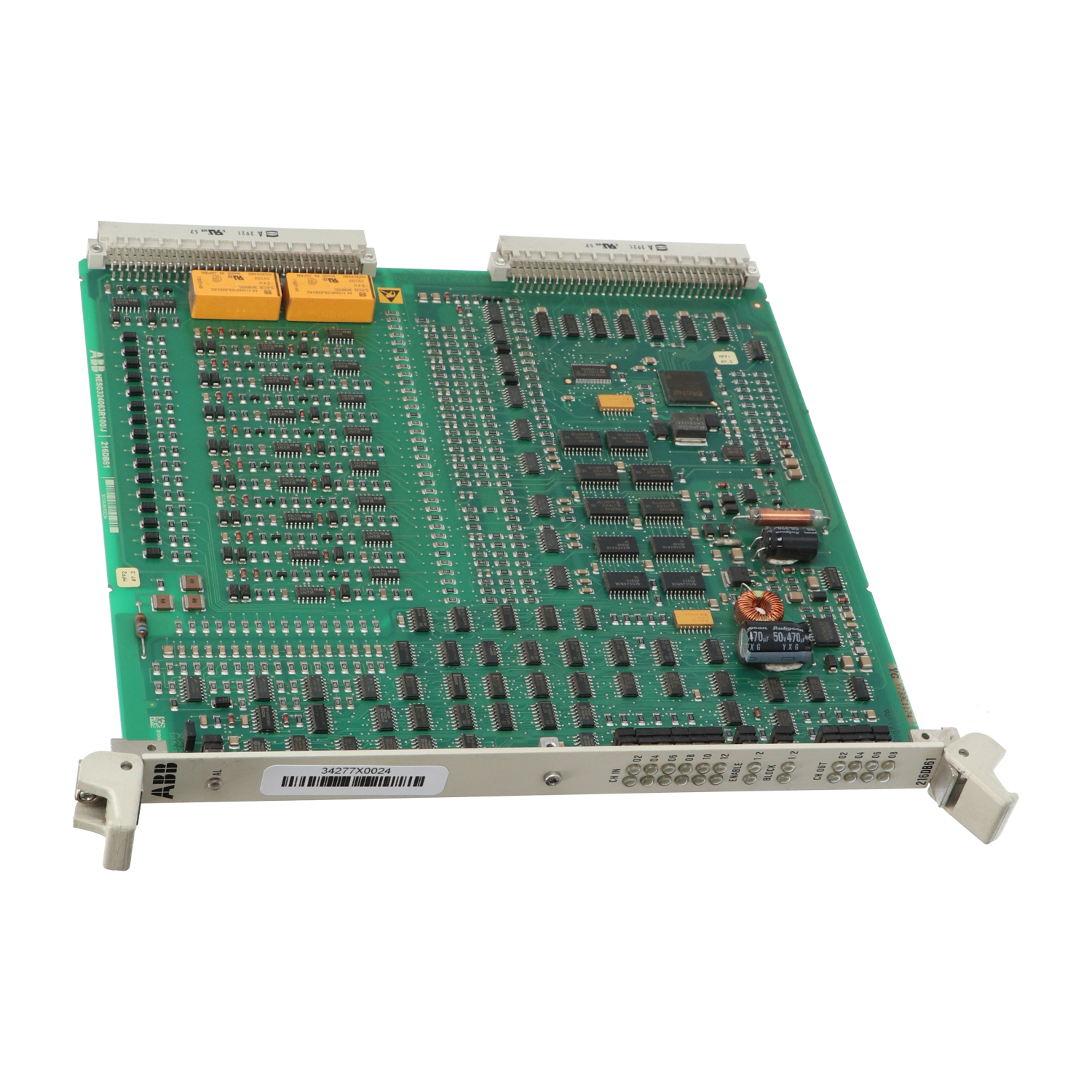

ABB 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board
Product Details:
| Brand name | ABB |
| Model | 216DB61 |
| Product ID | HESG334063R100 |
| Condition | NEW |
| Gross weight | 1.5kg |
| Packing size | 20*15*10cm |
| Payment Term | T/T |
| Warranty | 1 year |
| Courier Partner | DHL, UPS, TNT, FedEx and EMS |
The binary I/P and tripping unit comprises 16 I/P and 8 O/P channels.
The O/P channels are used to transfer the tripping commands of activated protection functions to the 216GA62 tripping relay module.
The I/P channels are used for external signals from the 216GE61 I/P relay module, which it transfers to the 216VC62a processing unit via the bus.
connector "a" (upper) : I/P channels CHI01...CHI16
connector "b" (lower) : channels CHO01...CHO08.
The position of the plug-in jumper BR1 on the PCB of 216DB61
determines whether the "ENABLE" and "BLOCK CH OUT" functions are
operational or not, i.e.
