Sumset International Trading Co.,Ltd We Are A Professional Supplier For Industrial Automation Spare Parts.
3 Years
| Ask Lasest Price | |
| Brand Name : | Honeywell |
| Model Number : | FC-SAI-1620M |
| Price : | $2000 |
| Payment Terms : | T/T |
| Supply Ability : | 999pcs |
| Delivery Time : | 5-7days |

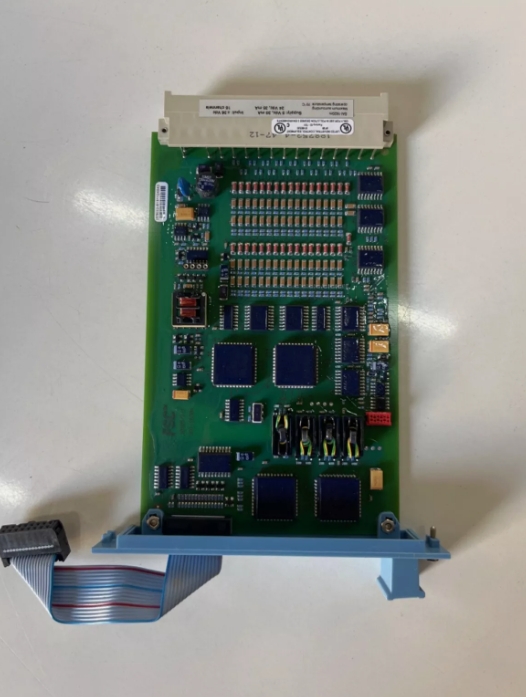

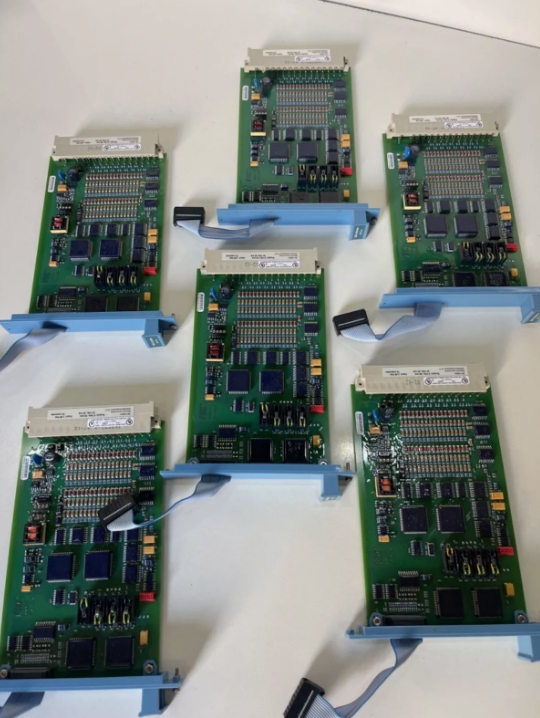

FC-SAI-1620M Honeywell Safety Manager System Module
Product Details:
The FC-SAl-1620M analog input module is designed to offer sixteen safe analog input channels (0-4V) compliant with SlL3 safety class as per lEC61508 standards. It is ideal for applications requiring high-density and high-safety analog input solutions. Controlled by the Safety Manager Controller, it performs self-tests to ensure absolute accuracy, correct conversion over the full range, checks for crosstalk between inputs, channel input filters,and internal supply voltages.
The Honeywell FC-SAI-1620M is a 16-channel analog input module for the Safety Manager system. It provides 24 VDC power to each channel and accepts 0(4)-20 mA input signals. The module is mounted in a card cage and can be configured to monitor a variety of process variables, such as temperature, pressure, and flow.
The Honeywell FC-SAI-1620M is a Safety Manager System Module that provides a comprehensive solution for safety management in industrial automation systems. Safety Manager™ is available in several configurations to suit virtually every process control requirement.Safety Manager can be configured for a number of architectures, each with its own characteristics and typical applications. The DMR architecture with 1oo2 voting is based on dual processor technology, and is characterized by a high level of self tests, diagnostics and fault tolerance. The DMR architecture is realized with a non-redundant Controller.
FSC provides a dual redundant fault-tolerant controller for safety and shutdown applications on the TPS system's Universal Control Network (UCN). These safety functions are integrated into the architecture to support unified operations and control, while at the same time providing the ability to isolate emergency shutdown (ESD) functions from process control strategies on a separate safety network.
| CC-TAIX11 51308365-175 |
| CC-TDOB11 51308373-175 |
| CC-TDIL01 51308386-175 |
| CC-TAIM01 51305959-175 |
| CC-TAIX01 51308363-175 |
| CC-TCF901 51308301-175 |
| CC-TDOB01 51308371-175 |
| CC-TAOX11 51308353-175 |
|
|
